UTV Installation Kit with SiriusXM Radio Roady BT Bluetooth Receiver

Now you can setup the Roady BT into a UTV or Side-by-Side vehicle such as a Polaris RZR, Ranger, CanAm or other utility vehicle with this installation kit. The Roady BT is one of our easiest satellite radios to install in your UTV. It Features a single wire connection between the display and Intelligent Power Adapter. The docking cradle has been eliminated making for quick installation. SiriusXM combined their most advanced technology with exciting features to create the ultimate listening experience in your UTV. Roady BT features a large color display with easy to use navigation buttons; gives you the ability to pause, rewind and replay live radio; let’s you set song, artist and game alerts; and can even connect to your vehicle’s audio system via Bluetooth.

Roady BT Features

1. Single Wire Connection to the display

2. Pause, rewind, and replay live satellite radio at the push of a button.
3. TuneStart™ automatically start songs from the beginning on your favorite channels.
4. 20 Channel Presets to save your favorite channels.
5. Get alerts when your favorite songs, artists, and sports teams play on another channel.
6. Bluetooth® Audio Capability to connect SiriusXM to your vehicle’s audio system.
7. Day/Night Settings easily switch between day and night brightness.
8. AUX and FM Connections

Audio Options

• Direct Connection to Ride Command™ - included in the kit are all the cables needed to connect directly to an existing Ride Command™ system.
• Direct FM Integration - with the supplied FMDA25 Direct Wire Adapter you can connect the system to any AM/FM radio. When powered on the system will take over an FM station and play SiriusXM Radio programming via that FM station with no static.

• AUX Cable - included in the package is an auxiliary cable that can connect to any stereo system with a 3.5mm aux input.



UTV Installation Kit Features

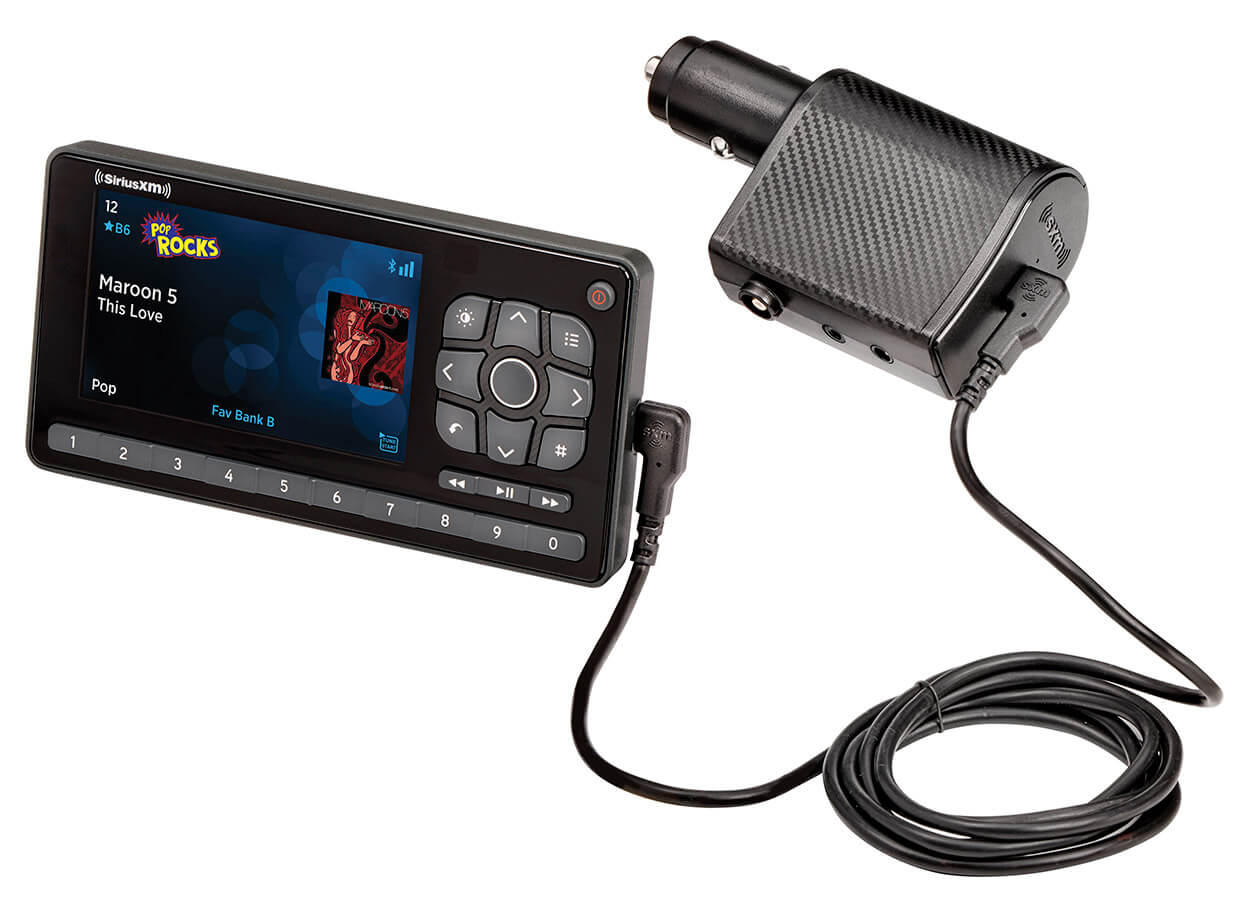

• Neat and easy installation - a single wire connection from the Intelligent Power Adapter to the display creates a clean installation.

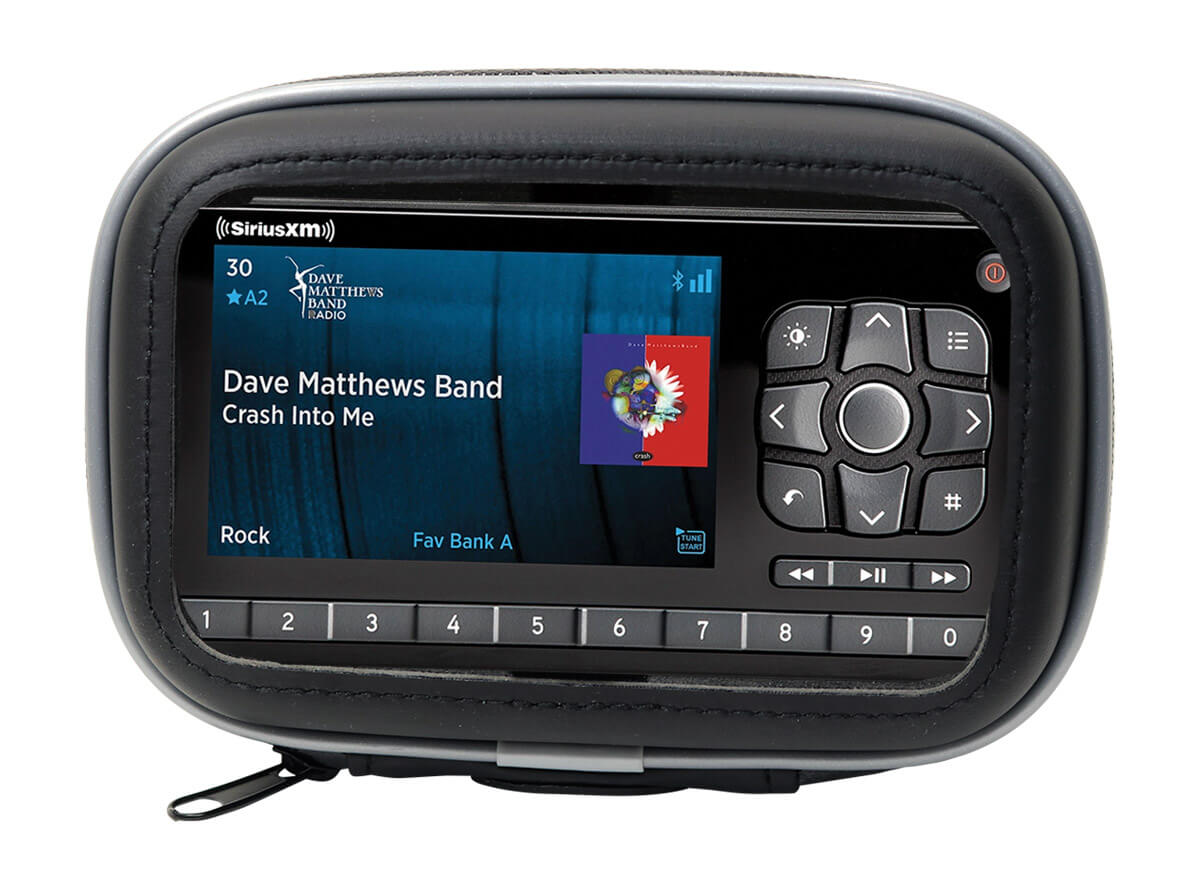

• Single point installation with protective case - includes a complete mounting system with protective case and multi-angle mount for different mount angles and surfaces.

• Optional RAM Mounting - the kit includes a RAM adapter plate to mount to a 25mm RAM mount.

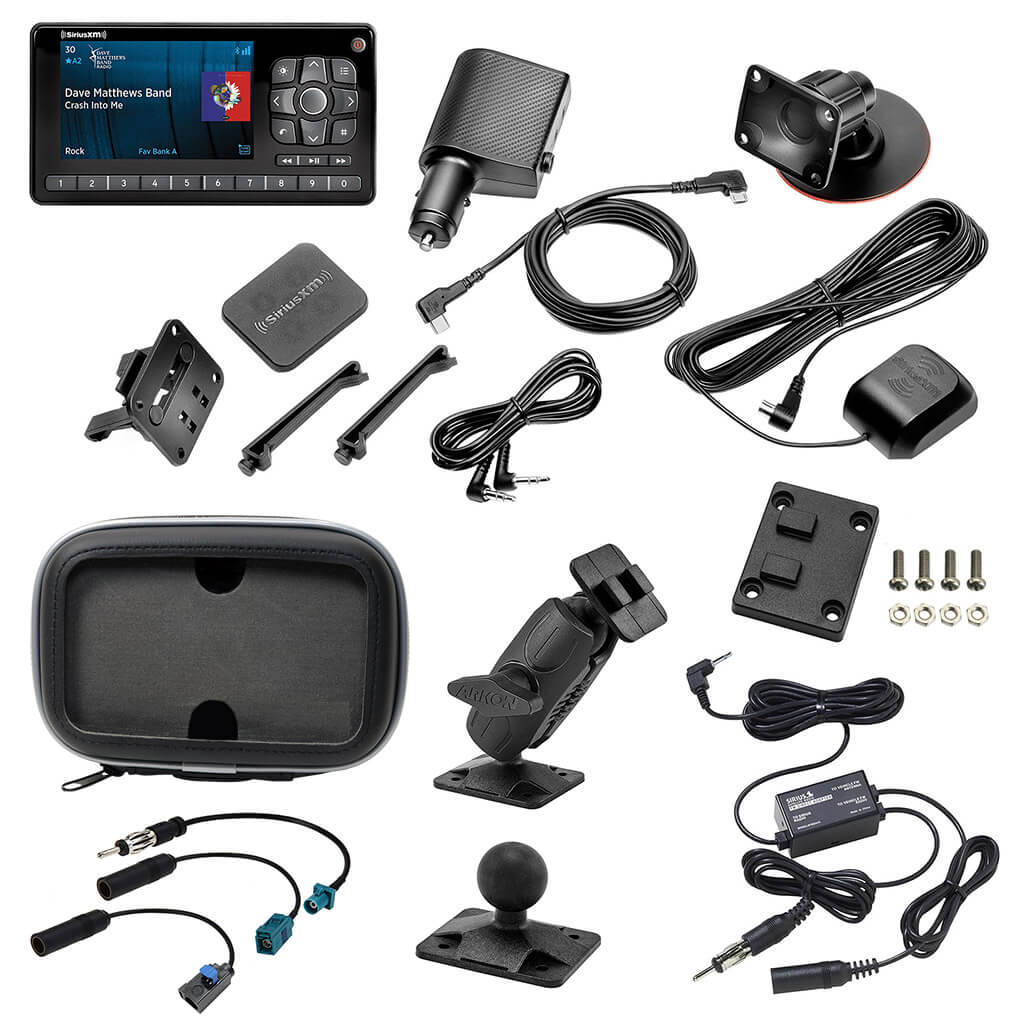

Package Includes:

The motorcycle kit comes packaged with everything you need to connect to an existing sound system, power speaker, Bluetooth system or headset.

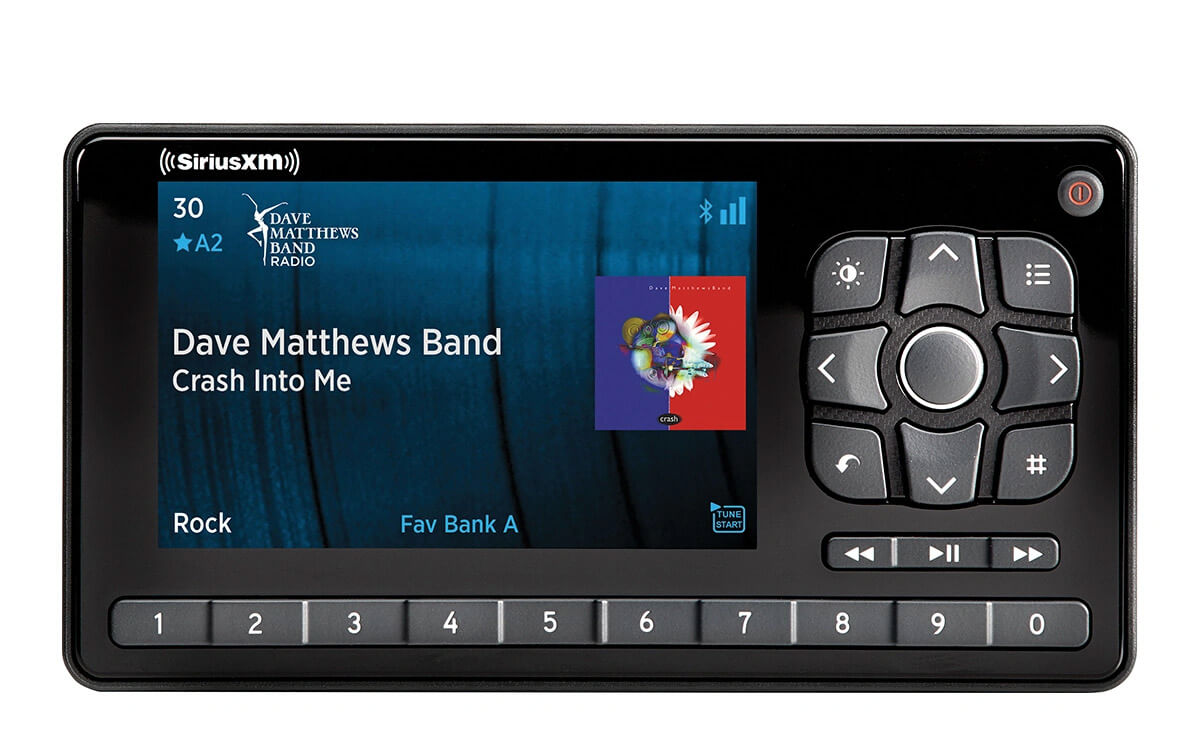

• SiriusXM Roady BT Display Controller

• Roady BT Intelligent Power Adapter
• Roady BT Display Cable

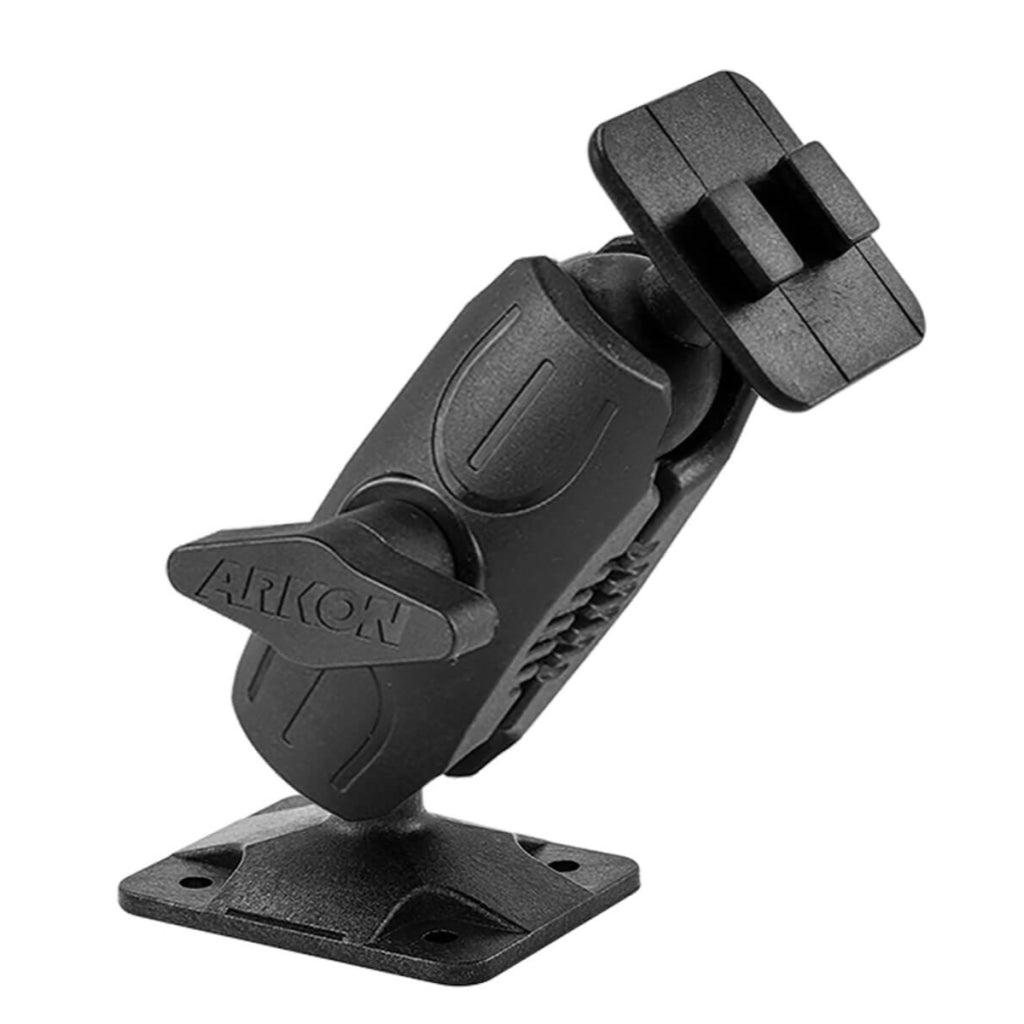

• Multi-angle Mount

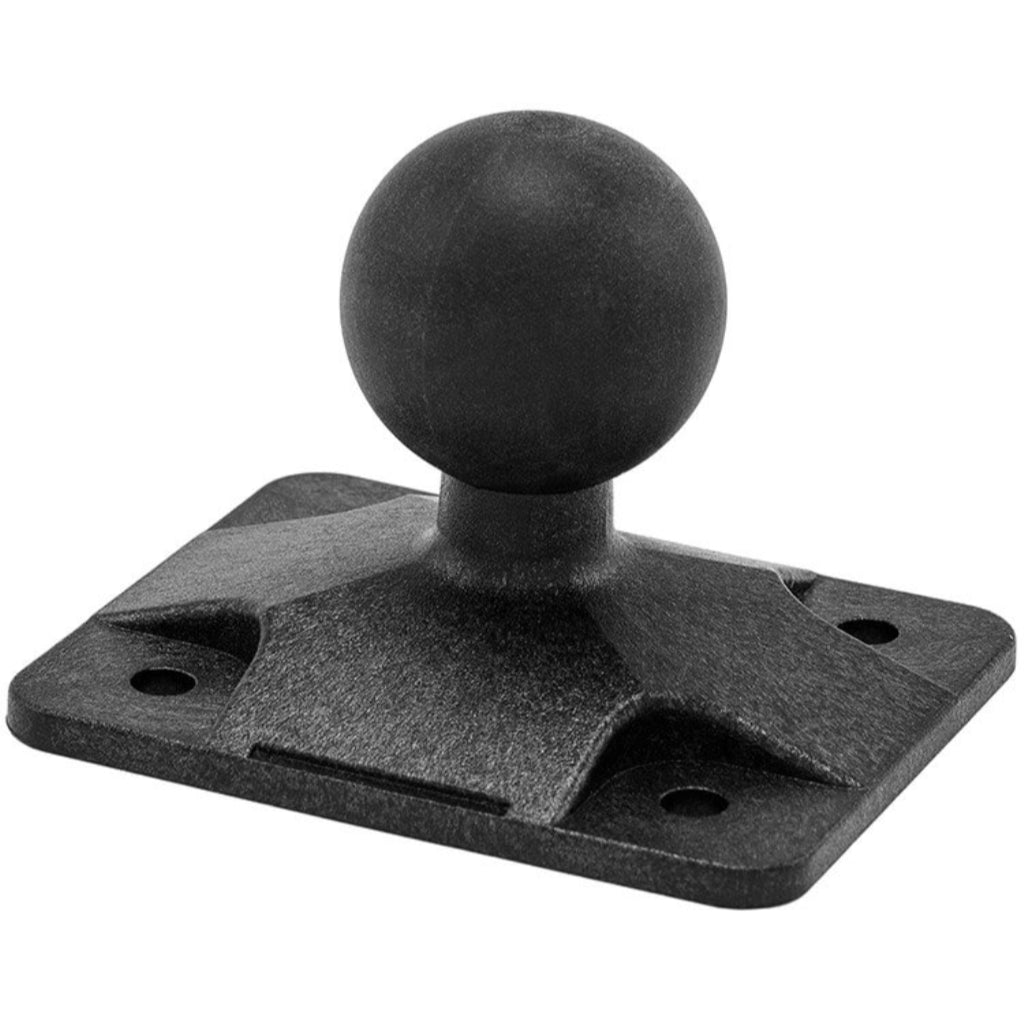

• RAM Ball Mount Adapter Plate (25mm)

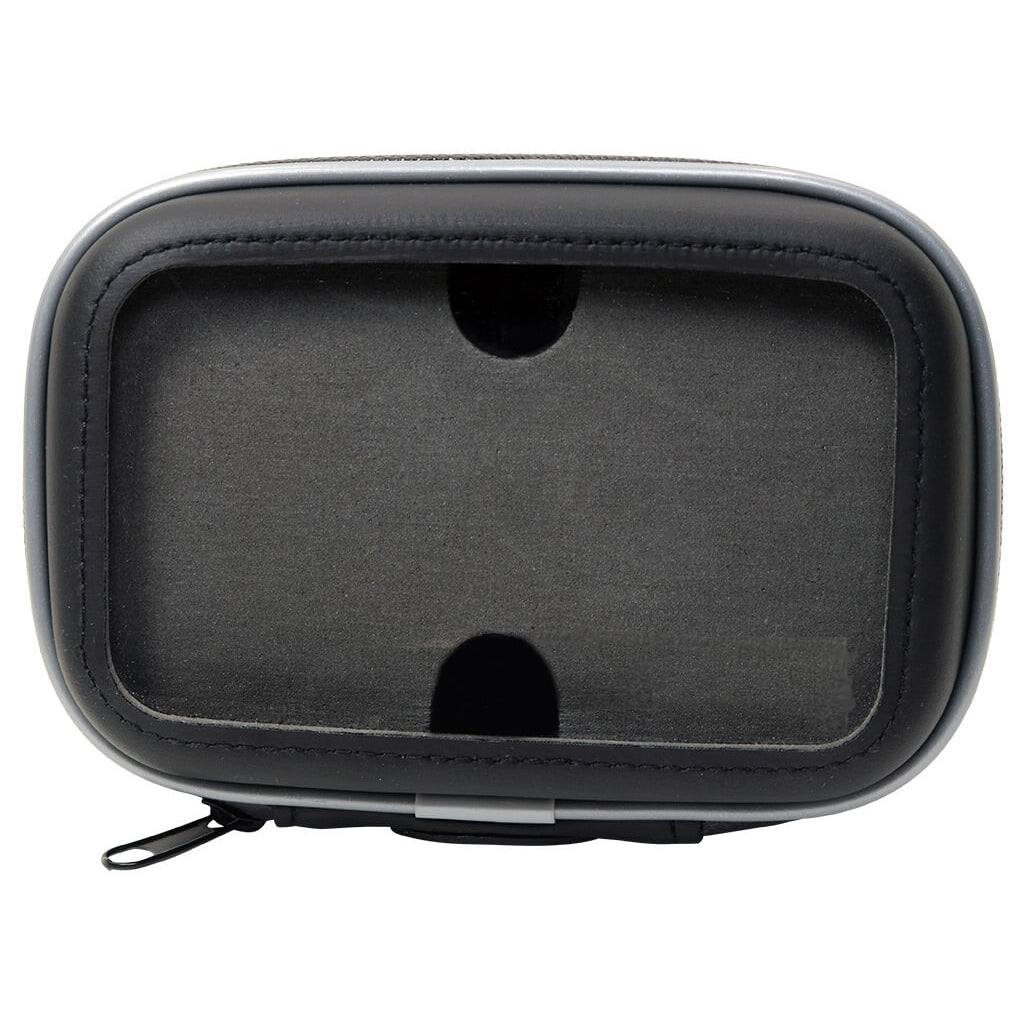

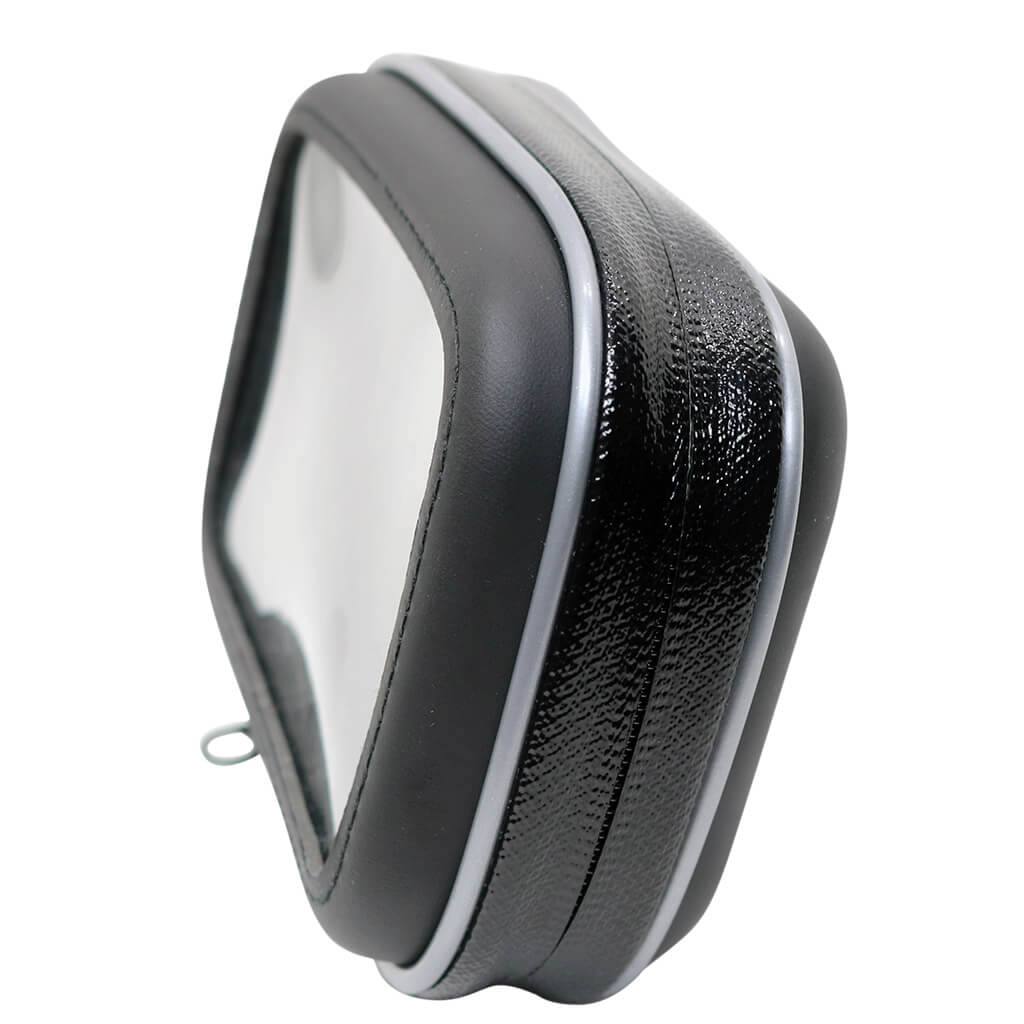

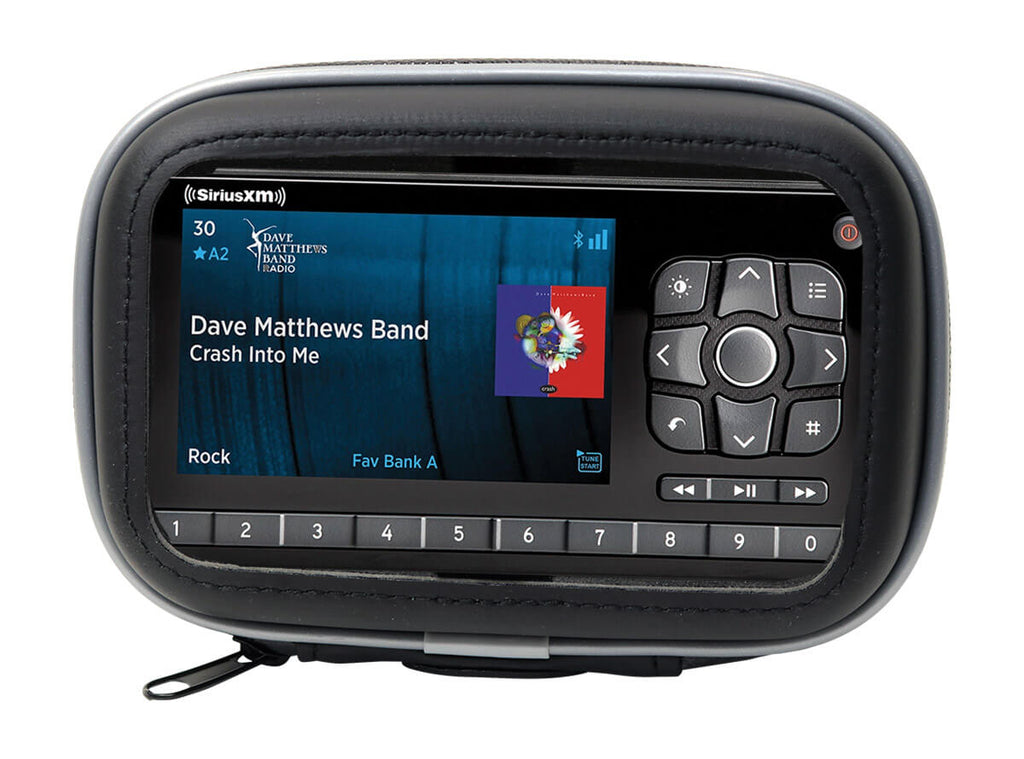

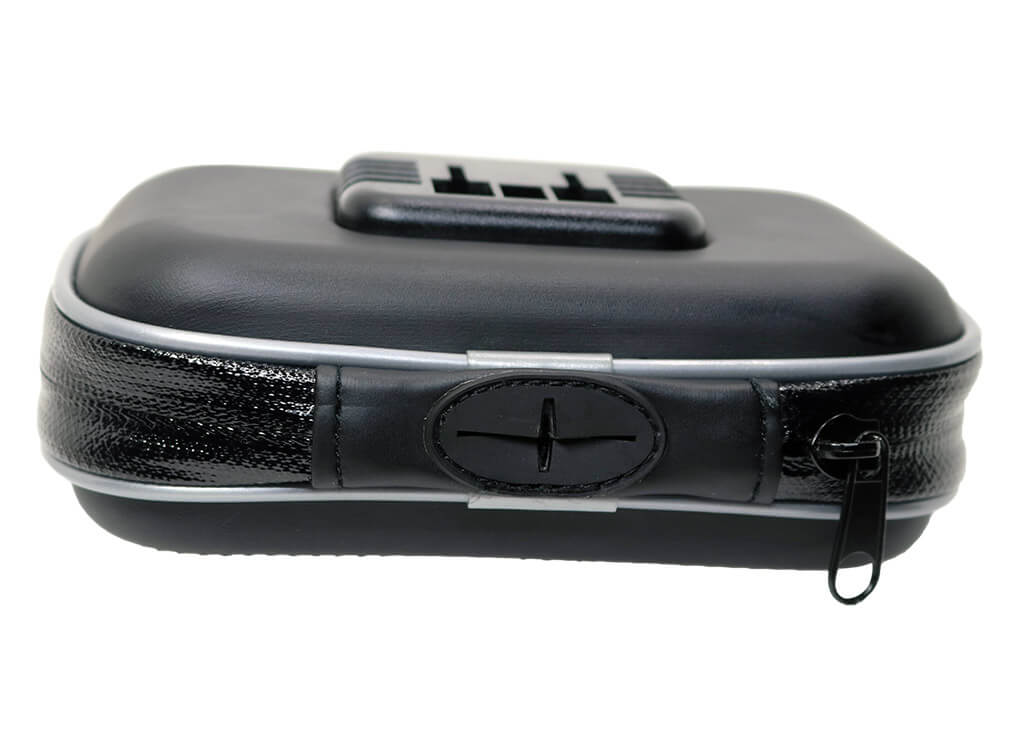

• Protective Case

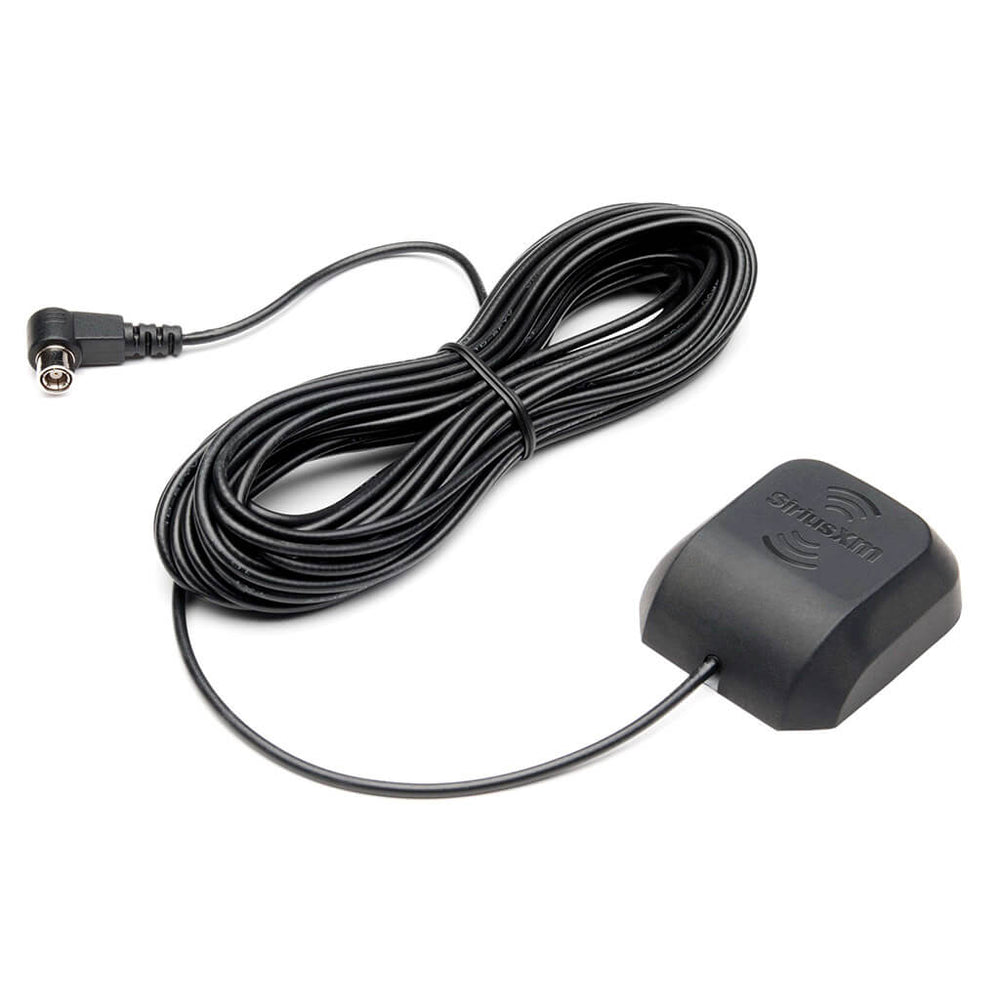

• SiriusXM Magnetic Antenna
• Metal L-bracket

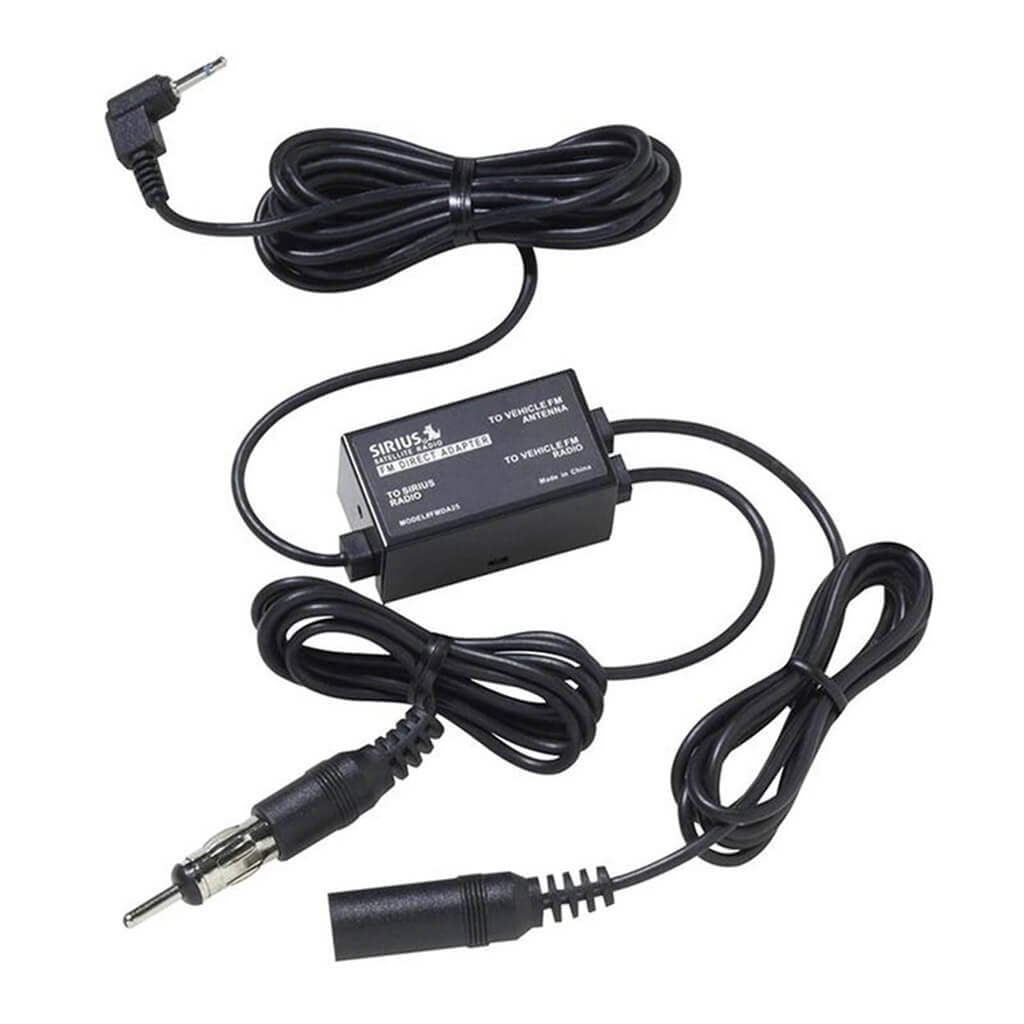

• FMDA25 Wired FM Relay

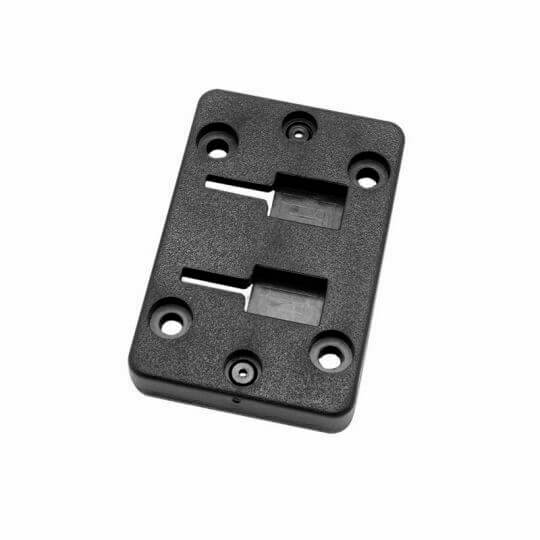

• AMPS Dual Notch Adapter Plate with Screws

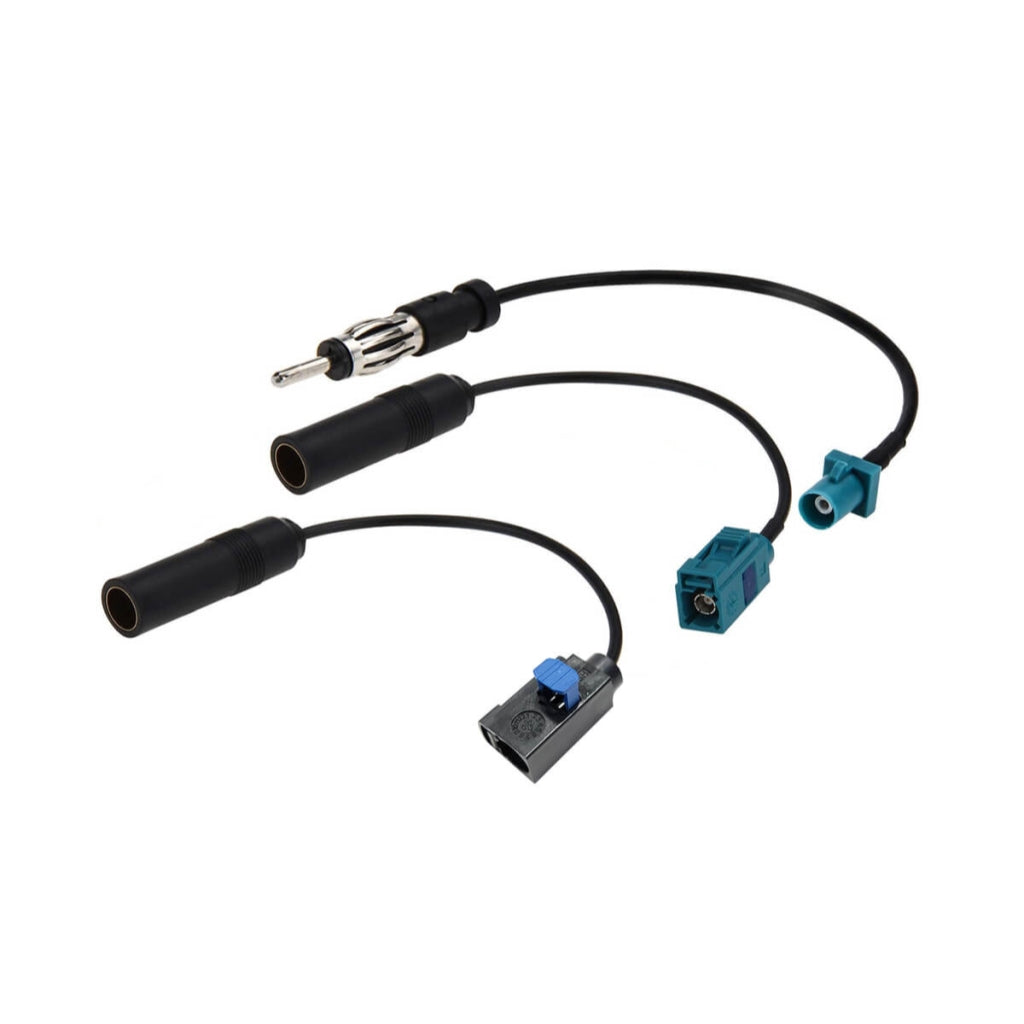

• Antenna Adapters
• Auxiliary Cable

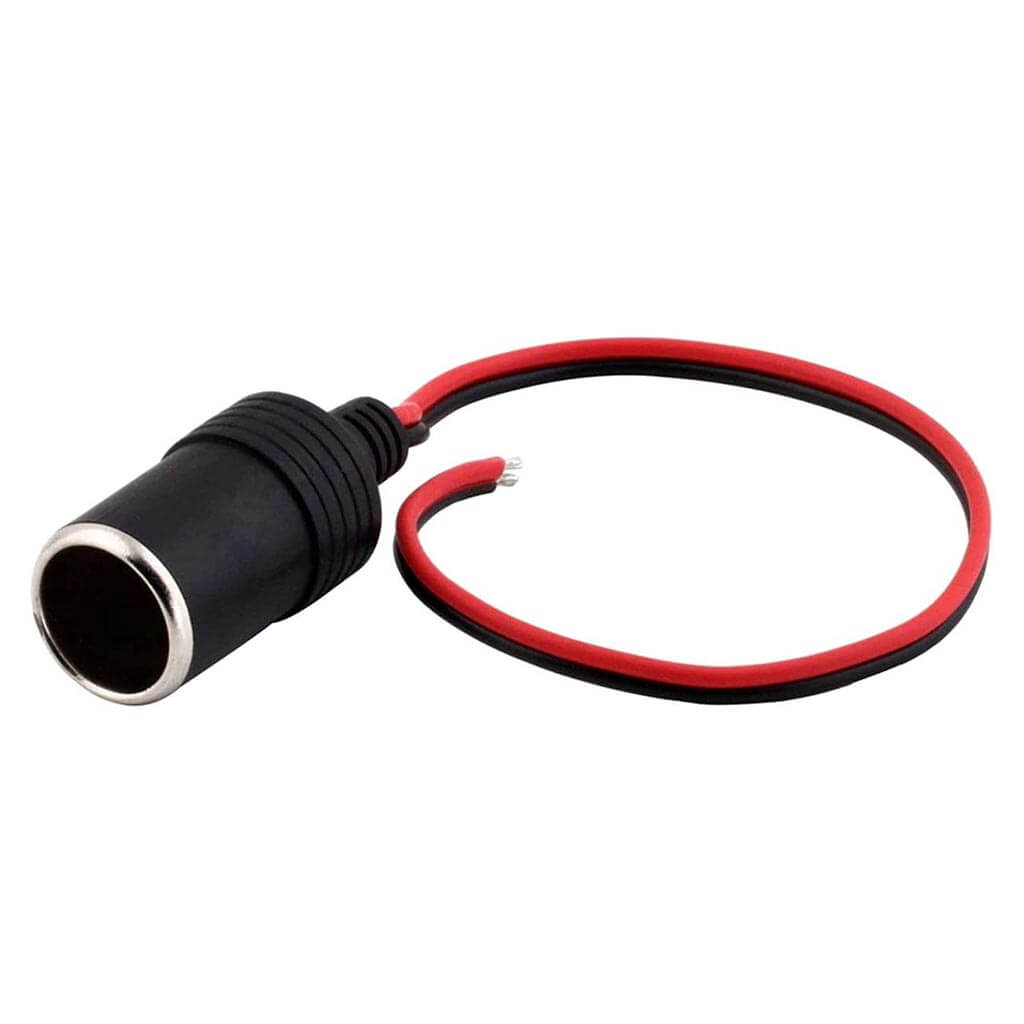

• Female Power Socket Adapter
• Instructions

• PLUS - FREE FEMALE POWER SOCKET TO HARDWIRE THE INTELLIGENT POWER ADAPTER!




Specifications

System:

• Power Requirements: 9-16 V DC,500 mA (max)
• Operating Temperature: -4°F to +140°F (-20°C to +60°C)
• Audio Output: 1.0 Vrms (max)

SiriusXM Roady BT Display:

• Dimensions: 5.0 in (width) x 2.7 in (height) x 0.64 in (depth) / 128 mm (width) x 68 mm (height) x 16.35 mm (depth)
• Weight: 4.1 oz (117 g)

Intelligent Power Adapter:

• Audio Connector: 1/8 in (3.5 mm) female
• Antenna Connector: SMB male
• FM Connector: 3/32 in (2.5 mm) female
• Dimensions: 3.7 in (width) x 2.1 in (height) x 1.2 in (depth) / 94 mm (width) x 54 mm (height) x 31 mm (depth)
• Weight: 1.9 oz (57 g)

Vehicle Antenna:

• Type: SiriusXM Magnetic Mount
• Connector: SMB female, right angle
• Cable Length: Approximately 23 ft (7.0 m)

Display Cable:

• Connectors: USB Micro-B male to male
• Cable Length: Approximately 6 ft (1.8 m)

Aux Audio Cable:

• Connectors: 1/8 in (3.5 mm) stereo male to 1/8 in (3.5 mm) stereo male
• Cable Length: Approximately 4 ft (1.2 m

IMPORTANT! The Tuner is built into the cigarette lighter power adapter which means the subscription follows the cigarette lighter power adapter (NOT the display). If you want to move the unit from vehicle to vehicle you must move the cigarette lighter power adapter, the display and display cable.

*Requires motorcycle audio system, Bluetooth speaker or headset to support Bluetooth streaming audio. FM direct connection requires an FMDA25 adapter, sold separately.

**Access to Alerts depends on subscription plan.
