Description
This 12-way splitter kit system connects up to 12 cable lines, using 3 Four-Way Amplified Splitters and 1 Four-Way Coupler.
- The 12-way splitter is a great way to use one satellite radio commercial antenna to 12 receivers.
- This item works with SiriusXM Satellite Radio. Applications include home, commercial and Recreational Vehicles.
- The signal splitter allows you to connect to receivers both inside and outside.
- It uses RG-6 CableRun cable to your desired length.
Do you want an easier way to stream commercial-free music, news, sports, or other entertaining radio programs to multiple locations? Look no further than this 12-way splitter helps organize and streamline commercial antennas because only one receiver is needed to connect to the 12 different locations. With a signal splitter for SiriusXM Radio receivers, your operations can play the same, commercial-free music, news, sports, or other entertainment channels throughout the entire space. Moreover, this 12-way splitter works at temperatures as low as -40 degrees Celsius and as high as 60 degrees Celsius.
Technical Specs
- Model #: SR-12
- Manufacturer: Pixel Technologies
- Dimensions: N/A
- Weight: 5 lbs.
Component Specs

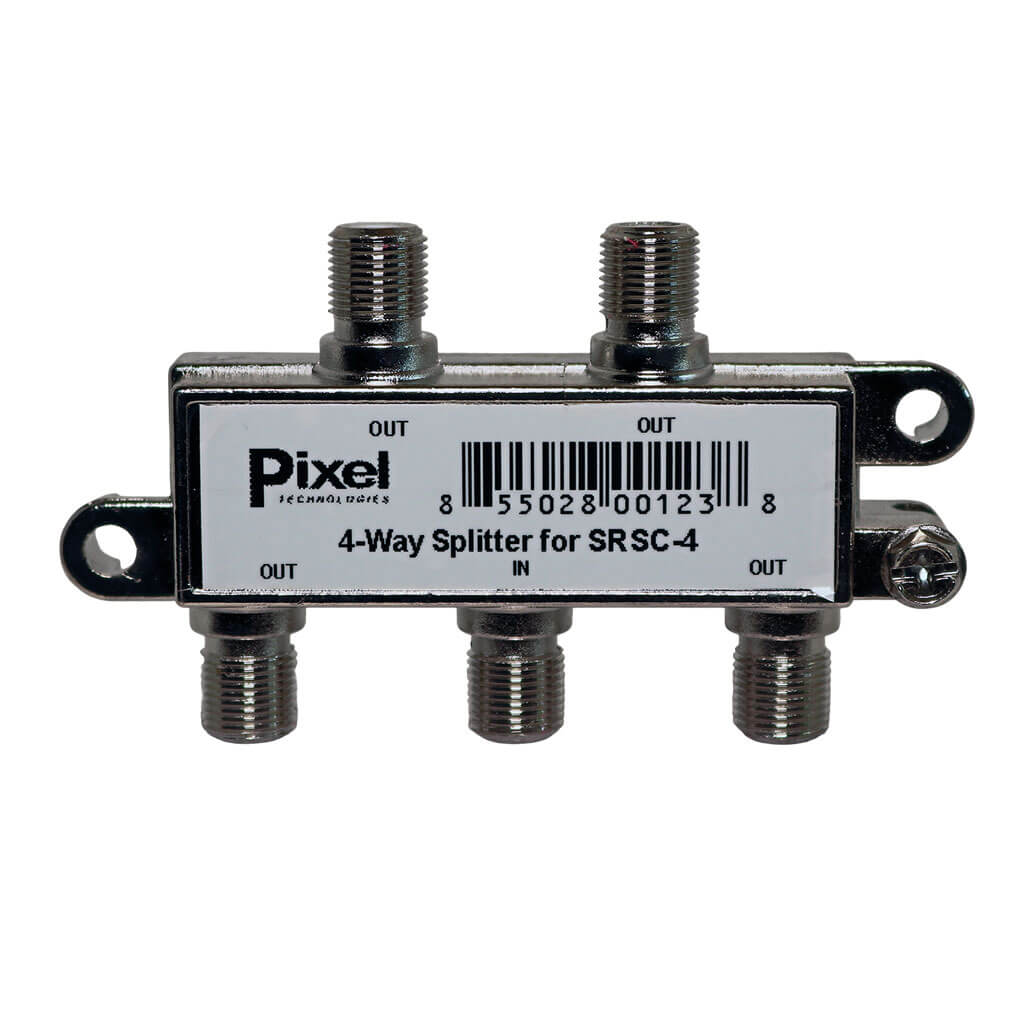

- 4-Way Splitter:
- Splitter Gain at 2.335 GHz (4.5 VDC): 8 dB
- Max noise figure:3 dBMax input signal: -10 dBm (with supplied db attenuator @ 4.5 VDC)
- Will operate outdoors: Yes, from -40 degrees C to + 60 degrees C
- Current consumption: 40-100 milliamps
- DC power passing: All ports diode protected
- DC voltage drop (output to input): 0.5 VDC typical
- 4-Way Coupler:
- Splitter Loss at 2.335 GHz: -12 dB max
- Will operate outdoors: Yes, from -40 degrees C to + 60 degrees C
- DC power passing: All ports, both directions
Package Includes
- (3) Amplified Splitters

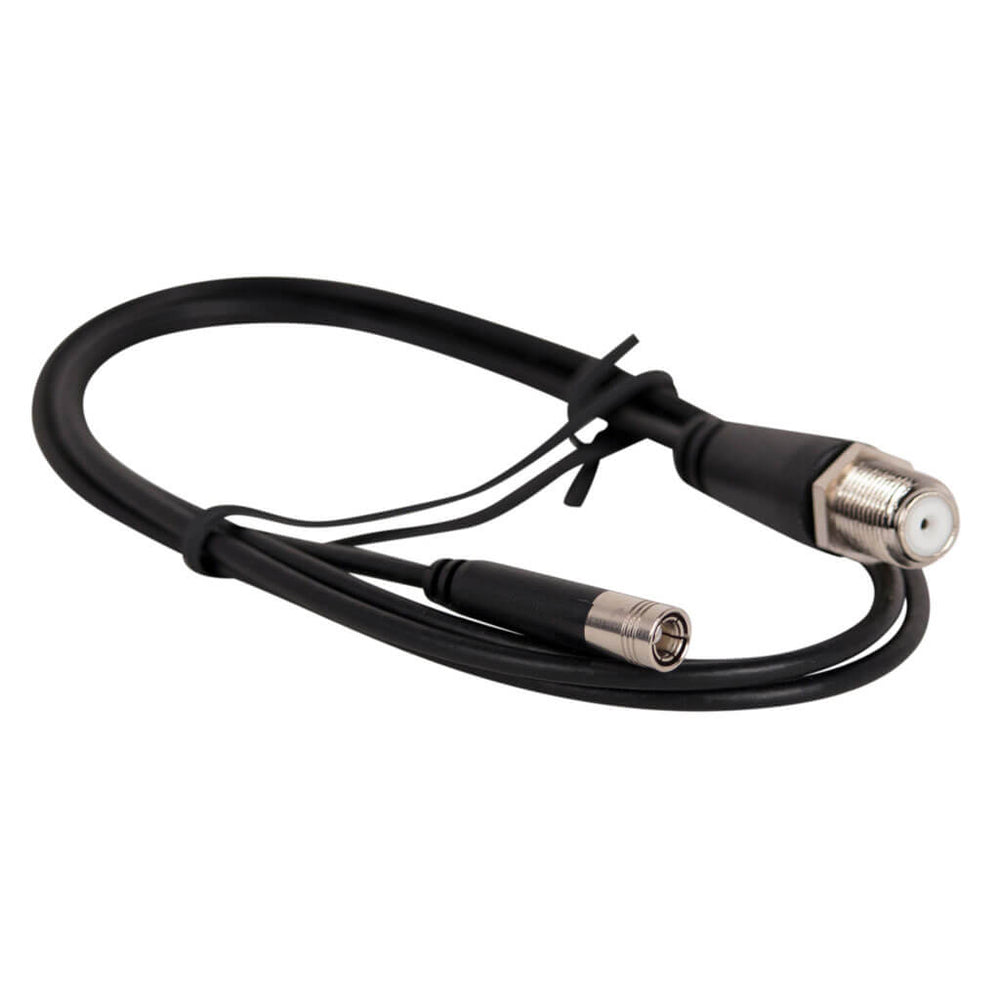

- (12) F-female to SMB-plug cable (3 feet)

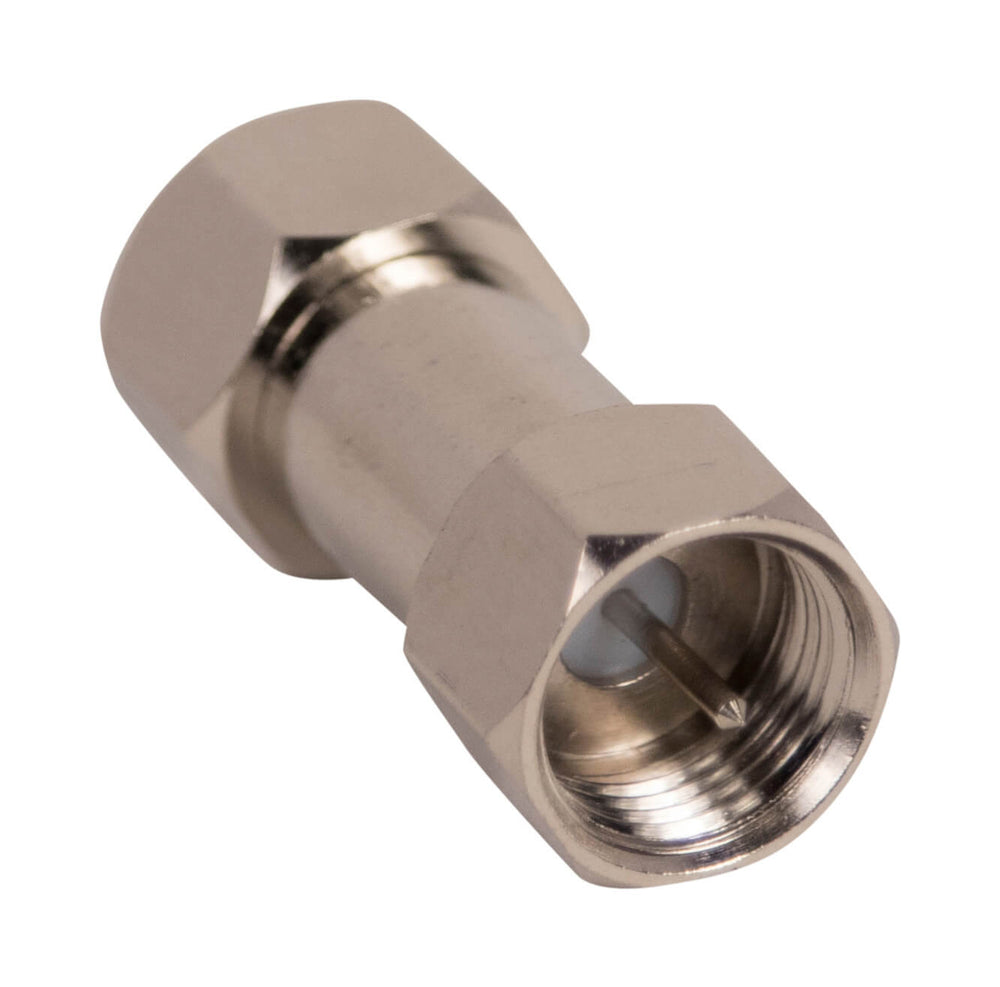

- (12) F-71 F-male to F-male coupler
- (3) 20 dB power passing attenuator
- (3) SMB-jack to F-male adapter
- (4) Mounting Screws
- (1) 4-way Coupler
- (4) 12-inch RG6 Cables
